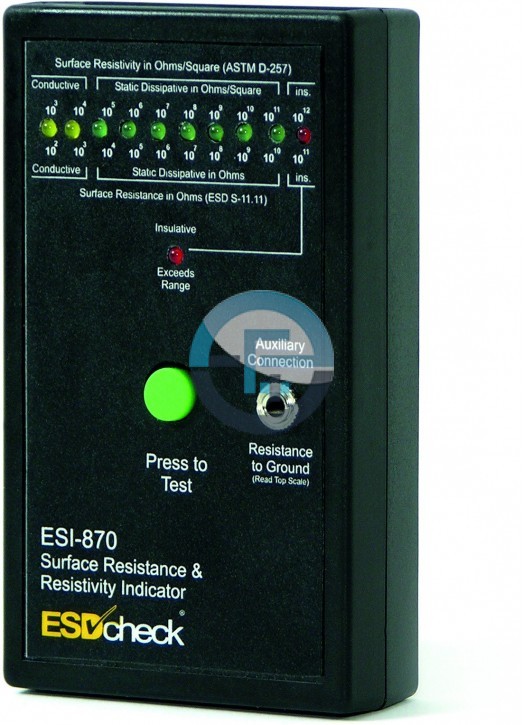

Prostat PAS-ESI 870 Resistivity Indicator Resistance and Resistivity ASTM D-257
- Part number: 61-100-0404
Prostat PAS-ESI 870 Resistivity Indicator – Eurostat
The Prostat PAS-ESI 870 portable tester measures surface resistivity and resistance to ground of any flat surface, in accordance with ASTM D-257, using parallel electrodes. Two simultaneous display units for complete analysis.
- ✓ Measures: surface resistivity and resistance to ground
- ✓ Method: parallel electrodes per ASTM D-257
- ✓ Two simultaneous measurement units displayed: resistance and resistivity
- ✓ Measurement range: 1 × 10³ to 1 × 10¹² Ω
- ✓ Conditions: 40–60°C / 0–100% RH
- ✓ Portable battery-operated tester
- ✓ For EPA zone ESD audit and quality control
- ✓ IEC 61340-5-1 compliant
- ✓ Brand: Prostat
Features
-
Conditioning
Single unit
-
Conforms to
EN 61340
Technical documentation
-
61-100-0404.pdf -
