ESD Wrist/Mat Grounding Cord – Male Stud and Eyelet – Eurostat
- Part number: 30-560-0048

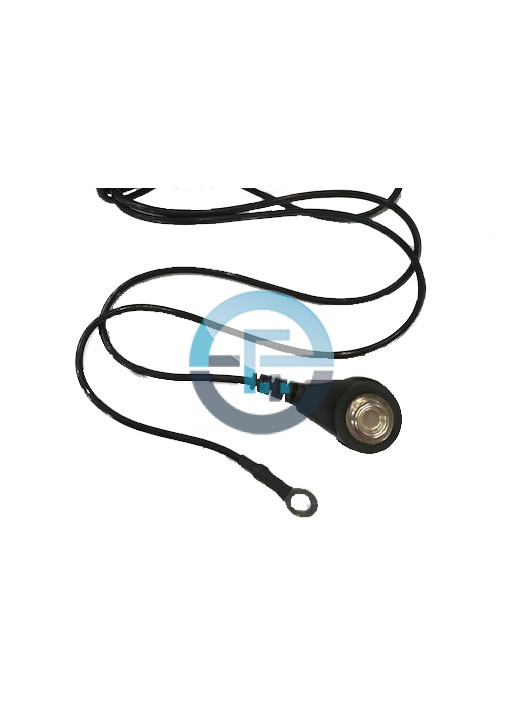

ESD Wrist/Mat Grounding Cord – Male Stud and Eyelet – Eurostat
This Eurostat ESD cord connects a table mat to a terminal or grounding point via a 10mm male stud + eyelet configuration in EPA zones. Conductive PU-sheathed cable construction.
- ✓ Length: 3m
- ✓ Material: conductive wires with non-conductive PU outer cover
- ✓ Colour: black
- ✓ Mat side: 10mm male stud
- ✓ Terminal side: eyelet diameter 5.3mm
- ✓ Straight cord diameter: 0.24cm
- ✓ Resistance: 1 MΩ ±10%
- ✓ IEC 61340-5-1 compliant
Features
-
Conditioning
25
